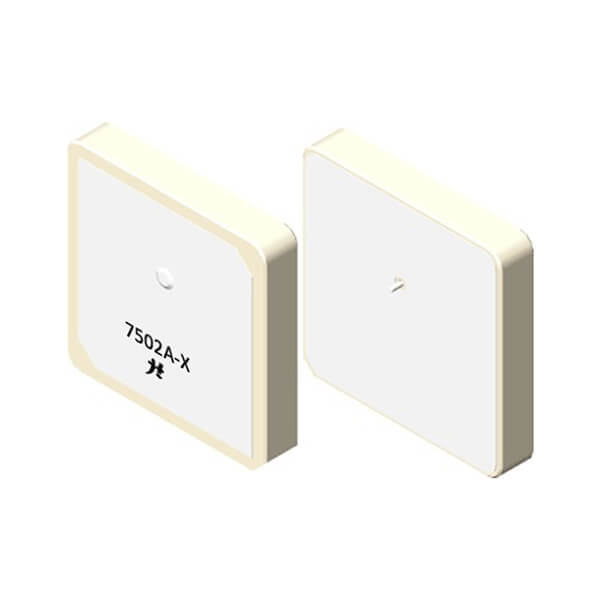

JTTD1575-1602S35P4X

The part number is listed with an X suffix because it must be tuned in the customer's PCB.
After tuning, a fixed letter (A, B, C…) will be assigned and the customized datasheet will be made accordingly.
Availability:
Inquire

Product Description

Preliminary Specification


Patch Antenna

JTTD1575-1602S35P4X


Feature

High gain , Compact

Pin type

Customization available

Electrical Specification

Center Frequency

1575.42 ± 3.0 MHz                    1602 ± 3.0 MHz

Return Loss @ F0

≥15.0 dB

Bandwidth @ 10dB Return loss

-

Polarizetion

RHCP

Gain @ Zenith

2.0 dBi typ.

Ground plane

36 x 36 mm

Impedance

50 Ω

Frequecy Temperature Coefficient

±20 ppm/℃

Operation Temperature Range

-40 ~ +85℃


 Mechanical Drawing


JTTD1575-1602S35P4A-2
