JTT1596S25P4X

The part number is listed with an X suffix because it must be tuned in the customer's PCB.
After tuning, a fixed letter (A, B, C…) will be assigned and the customized datasheet will be made accordingly.

Download: JTT1596S25P4A.pdf

Availability:


Inquire

Product Description

Preliminary Specification

Patch Antenna

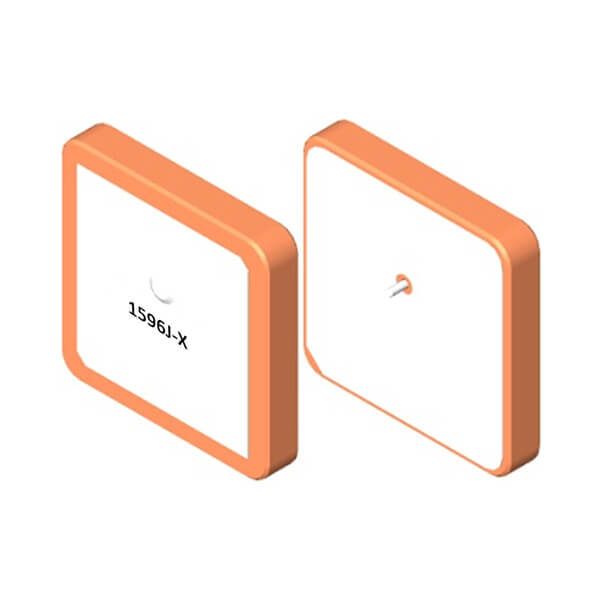

JTT1596S25P4X

ITEMS	SPEC
Frequency Range	1596.0±3.0 MHz
Return Loss at Fo	15 dB min.
VSWR (at Center Frequency)	-
Bandwidth in 10dB	13.0 max.
Polarization	RHCP
Gain at Zenith	5DBI typ.
Gain at 10o elevation	-
Frequency Temperature Coefficient	0±20 ppm/℃
Axial Ratio [at fo]	5.0 dB max.
Ground plane	-
In/Out Impedance	50 Ω
Operation Temperature Range	-40℃ to +85℃

Mechanical Drawing

JTT1596S25P4A-2

JTT1596S25P4A-3
