JLTD1616-2492S36X

The part number is listed with an X suffix because it must be tuned in the customer's PCB.
After tuning, a fixed letter (A, B, C…) will be assigned and the customized datasheet will be made accordingly.
Availability:
Product Description

Preliminary Specification

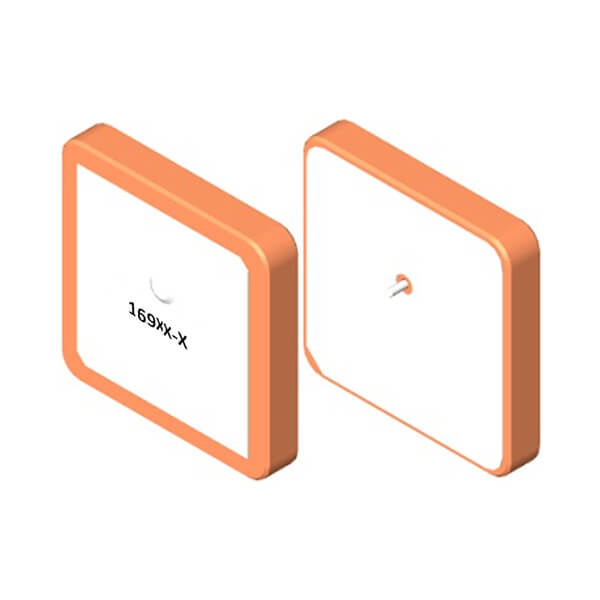

Patch Antenna:JLTD1616-2492S36X


Feature

High gain , Compact

Pin type

Customization available

Electrical Specification

Center Frequency

1615.68 ± 4.08 MHz

2491.75 ± 4.08 MHz

Return Loss @ F0

≥15.0 dB

Bandwidth @ 10dB Return loss

≥ 15 MHz

≥ 40 MHz
Polarizetion

LHCP

RHCP

Gain @ Zenith

1.5dBi typ.

1.5dBi typ.
Isolation

≥20.0 dB

Impedance

50 Ω

Frequecy Temperature Coefficient

±20 ppm/℃

Operation Temperature Range

-40 ~ +85℃


 Mechanical Drawing

JLTD1616-2492S36D-2
