Item | Specifications | |
Antenna | Center Frequency | 1568±3MHz |
Band Width | CF±8MHz | |
Polarization | RHCP | |
Gain | 5dBic(Zenith) | |
V.S.W.R | <1.5 | |
Impendence | 50Ω | |

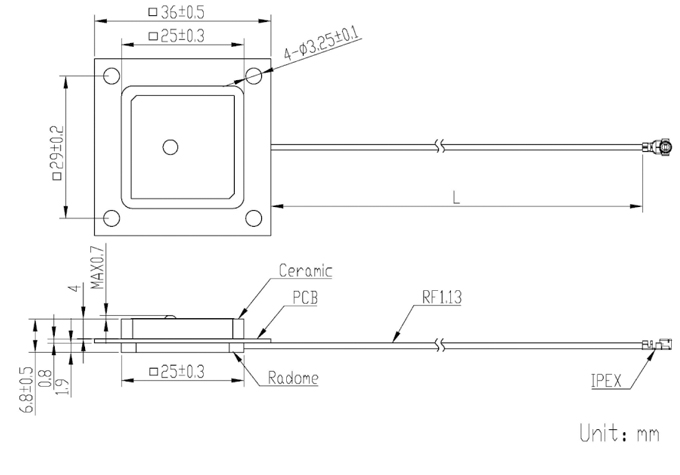

Dimension | 25*25*4mm | |
LNA | Gain | 28±2dB |
Noise Figure | <2.0dB | |
Supply Voltage | 3~5V DC | |
Current Consumption | <15mA | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RF1.13 or others |
Connector | IPEX or others | |
Mounting Method | Embedded | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 75% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
