Item | Specifications | |
Antenna | Center Frequency | 1575.42MHz |
Band Width | 8MHz | |
Polarization | RHCP | |
Gain | 1.0dBi@LNA’s PCB | |
V.S.W.R | 1.24 | |
Impedance | 49.8Ω | |

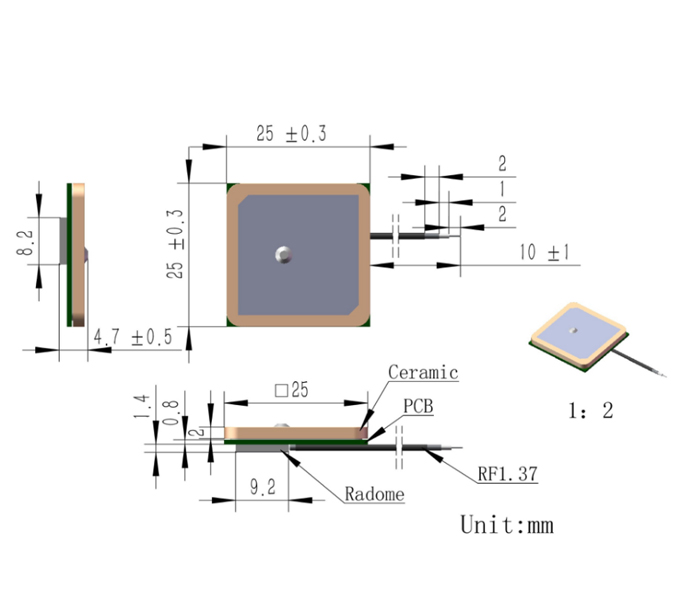

Dimension | 25*25*2mm | |
Item | Specifications | |
LNA | Frequency | 1575.42MHz |
Gain@3.3V | 20.54dB | |
Noise Figure | 2.03dB | |
Supply Voltage | 2.5~3.3V DC | |
Current Consumption | 2.6mA@3.0V | |
Out V.S.W.R | 1.37 | |
Electric current | 0.0072W | |
Item | Specifications | |
Material | RF Cable | RF1.37--24.5mm |
RF Connector | - | |
Shield Material | Tinplate | |
PCB Material | FR4 | |
Antenna | Dielectric Ceramics | |
