Item | Specifications | |
Antenna | Frequency Range | 1575.42±3MHz |
Polarization | RHCP | |
Gain | 2dBic@PCB(Zenith) | |
V.S.W.R | <1.5 | |
Impedance | 50Ω | |

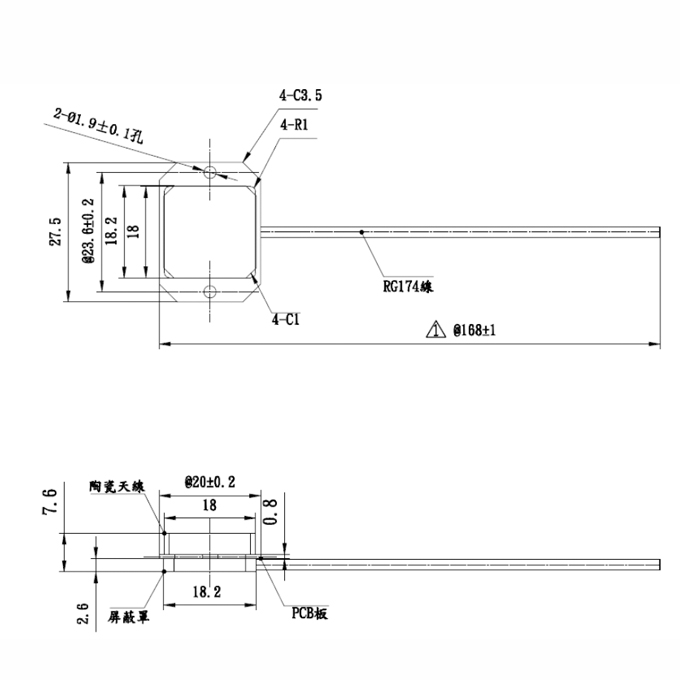

Dimension | 18*18*4mm | |
LNA | Gain | 28±2dB |
Noise Figure | ≤1.5dB | |
Supply Voltage | 3~5V DC | |
Current Consumption | <30mA | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RF174 or others |
Connector | - | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 75% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
