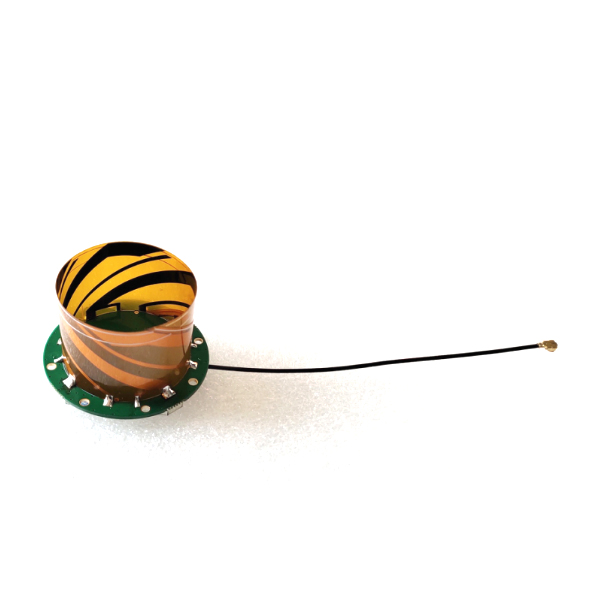

JCN283 High Accuracy GNSS Helix Antenna

Download:
JCN283.pdf

Availability:



Inquire

Product Description

Item		Specifications
Antenna	Frequency	GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b L-Band
	Polarization	RHCP
	Axial Ratio	≤3dB
	V.S.W.R	≤2.0
	Peak Gain	≥2.5dBic
	Impedance	50Ω
	Horizontal coverage angle	360°
LNA	Gain	33±2dB
	Noise Figure	≤1.5dB
	Passband fluctuation	±2.0dB
	Supply Voltage	3~5V DC
	Current Consumption	≤50mA
	V.S.W.R	≤2.0
Mechanical	Connector	IPEX
	Cable	RF1.37/10cm
	Mounting Method	Screw & Embedded
Environmental	Operating Temperature	-40℃~+70℃
	Relative Humidity	Up to 95% non-condensing
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
