Item | Specifications | |
Antenna | Frequency Range | 1561.098~1575.42MHz |
Polarization | RHCP | |
Gain | 5dBic(Zenith) | |
V.S.W.R | <1.5 | |
Impedance | 50Ω | |
Axial Ratio | 3dB(max) | |

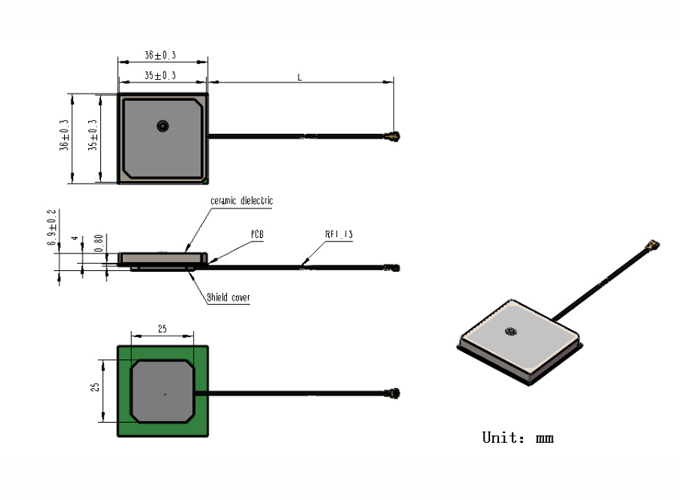

Dimension | 35*35*4mm | |
LNA | Gain | 28±2dB |
Noise Figure | ≤1.0dB | |
Supply Voltage | 3.3±0.3V DC | |
Current Consumption | <24mA@3.3V @DC | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RF1.13 or others |
Connector | IPEX or others | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 75% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
