Item | Specifications | |
Antenna | Frequency Range | 890~960/1710~1880MHz |
Polarization | Linear | |
Gain | 3dBi(Zenith) | |
V.S.W.R | ≤2.0(min) | |
Impedance | 50Ω | |

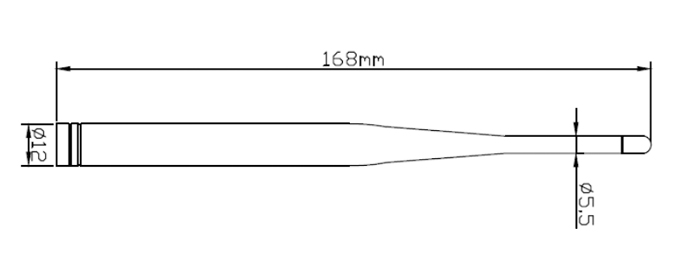

Dimension | Φ12*168mm | |
Max Power | 20W | |
Mechanical | Color | Black |
Connector | SMA-J | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Ingress Protection | Lighting protection | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
