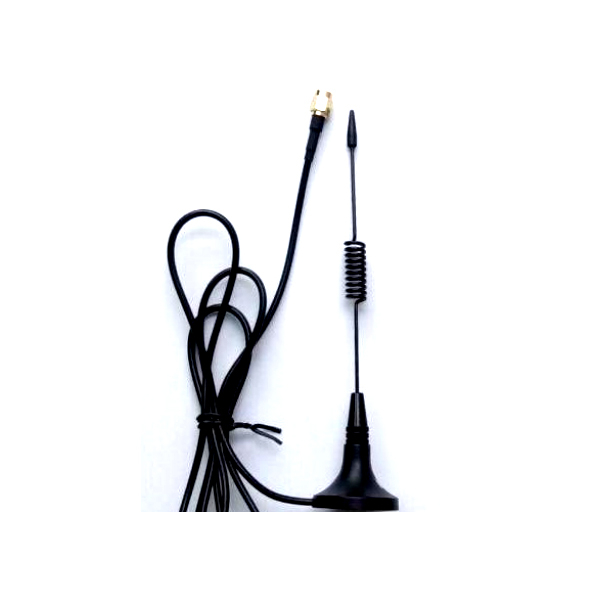

JCG826

Download:
JCG826.pdf

Availability:



Inquire

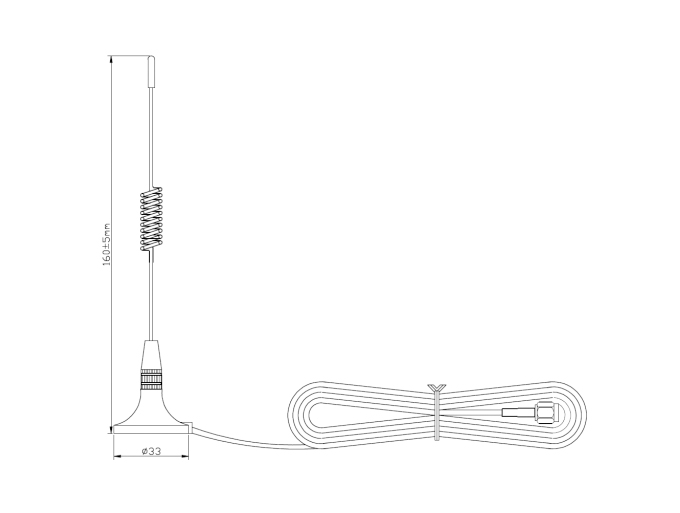

DIMENSIONS

Item		Specifications
Antenna	Frequency Range	617~960/1710~2690/3300-3800MHz
	Polarization	Linear
	Gain	3dBi typ.
	V.S.W.R	＜3.0
	Impedance	50Ω
Mechanical	Cable	RF1.37 or others
	Connector	IPEX or others
	Mounting Method	Knuckle
Environmental	Operating Temperature	-40℃~+85℃
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

SPECIFICATIONS

Item		Specifications
Antenna	Frequency Range	824~960/1710~2170MHz
	Polarization	Linear
	Gain	3dBi（Zenith）
	V.S.W.R	＜2.0
	Impedance	50Ω
	Dimension	Φ33*160mm
Mechanical	Cable	RG174
	Connector	SMA or others
	Mounting Method	Magnet
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	Lighting protection
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
