Item | Specifications | |
Antenna | Frequency Range | 698~960/1710~2690MHz |
Polarization | Linear | |
Gain | 2.0dBi(Zenith) | |
V.S.W.R(min) | <3.0 | |
Impedance | 50Ω | |

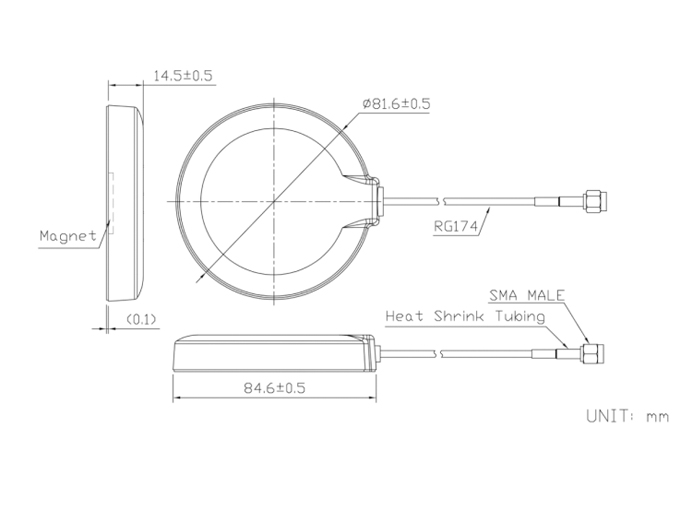

Mechanical | Cable | RG174 or others |
Connector | SMA or others | |
Radome Material | ABS | |
Mounting Method | Adhesive/Magnet | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Ingress Protection | IP67 | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
