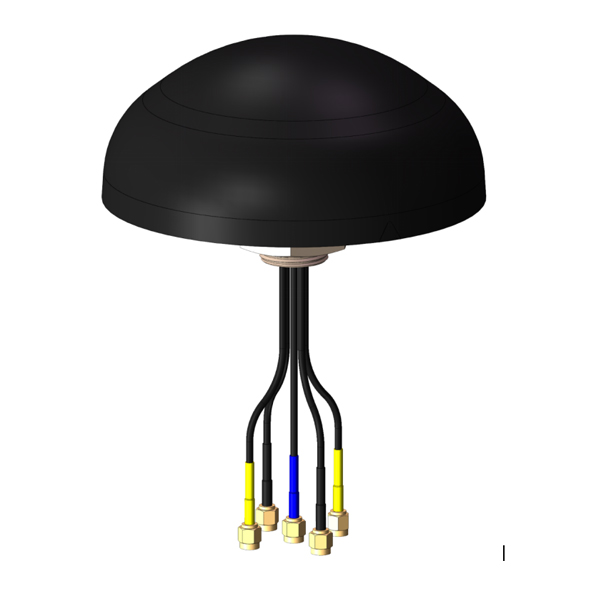

JCE607NR2VM GNSS+NR MIMO+V2X MIMO Antenna

Download:
JCE607NR2VM.pdf

Availability:



Inquire

Product Description

Item		Specifications
GNSS Antenna	Frequency	GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6
	Polarization	RHCP
	LNA Gain	30±2dB
	Noise Figure	≤2.0dB
	Supply Voltage	3~12V DC
	Current Consumption	≤60mA
	V.S.W.R	＜2.0
	Impedance	50Ω
5G NR Antenna MIMO	Frequency Range	617~960MHz/1710~5000MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	3dBi
	Impedance	50Ω
V2X Antenna MIMO	Frequency Range	5850~5950MHz
	V.S.W.R	＜2.0
	Polarization	RHCP
	Gain	6dBi
	Impedance	50Ω
Mechanical	Cable	RG1741&LMR1002&AL302*2/3m
	Connector	SMA straight male
	Radome Material	PC
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
