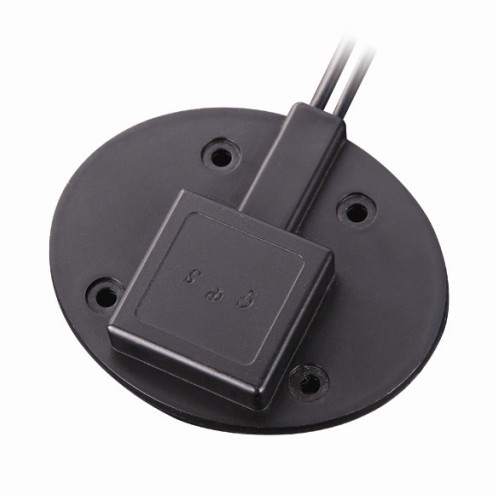

JCB014 GPS GSM Combo Antenna

Availability:
Product Description

Function:ComboAntenna



11


No.

Item

Specifications

Post Environmental Tolerance

1

Center Frequency

1575.42 MHz

±3 MHz

2

Band Width

±5 MHz

±1 MHz

3

V.S.W.R(in BW)

1.5︰1

4

Gain(Zenith)

3 dB

±0.5 dB

5

Polarization

RHCP

6

Impedance

50 Ω

3.2 LNA/Filter

Form 2

No.

Item

Specifications

Post Environmental Tolerance

1

LNA Gain

28±2 dB

±2.5 dB

2

Noise Figure

1.5 dB

3

Filter Out Band Attenuation

12dB Min f0+50MHz  16dB Min f0-50MHz

± 1.0 dB

4

DC Voltage

2.2~5 V

5

DC Current

5~15 mA

3.3 GSM Antenna

Form 3

No.

Item

Specifications


1

Frequency

824~960 MHz/1710~1990 MHz


1920~2170 MHz




2

V.S.W.R(5m)

≤2.0︰1


3

Gain(Zenith)

2 dBi


4

Impedance

50 Ω


3.4 Mechanical

Form 4

No.

Item

Specification


1

Cable

RG174 3m/5m or others


2

Connector

SMA/SMB/MCX or others


3

Plastic Housing

Black


4

Mounting

Screw/Adhesive
