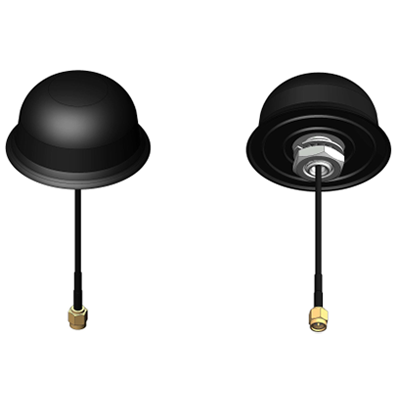

JCA602 GPS Active Antenna

Download:
JCA602.pdf

Availability:



Inquire

DIMENSIONS

JCA602

SPECIFICATIONS

Item		Specifications
Antenna	Center Frequency	1575.42±3MHz
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	2dBic（Zenith）
	V.S.W.R	＜1.5
	Impedance	50Ω
	Axial Ratio	3dB（max）
	Dimension	25254mm
LNA	Gain	28±2dB
	Noise Figure	＜1.5dB
	Supply Voltage	2.2~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
Mechanical	Cable	RG174 or others
	Connector	SMA/MCX/FAKRA or others
	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
