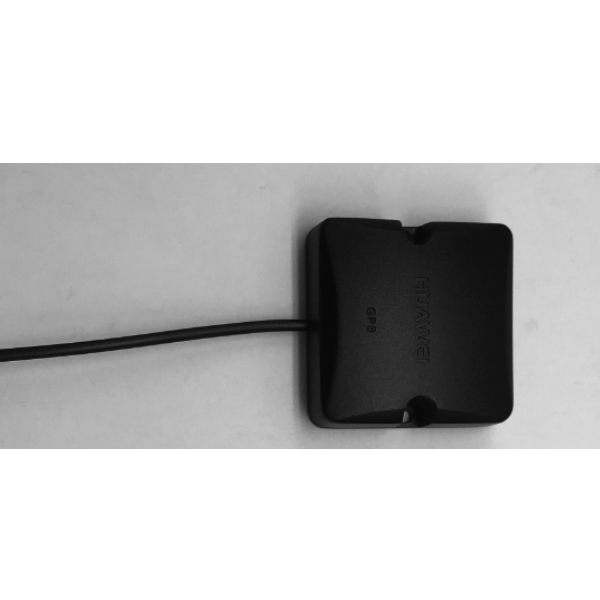

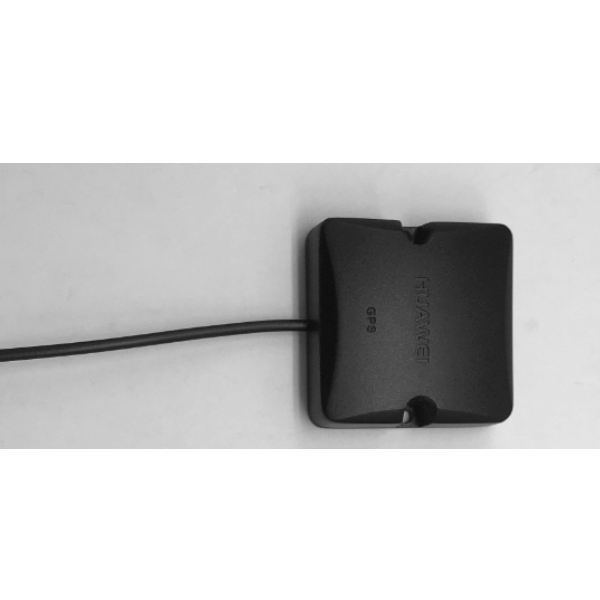

JCA237

Download:
JCA226.pdf

Availability:



Inquire

DIMENSIONS

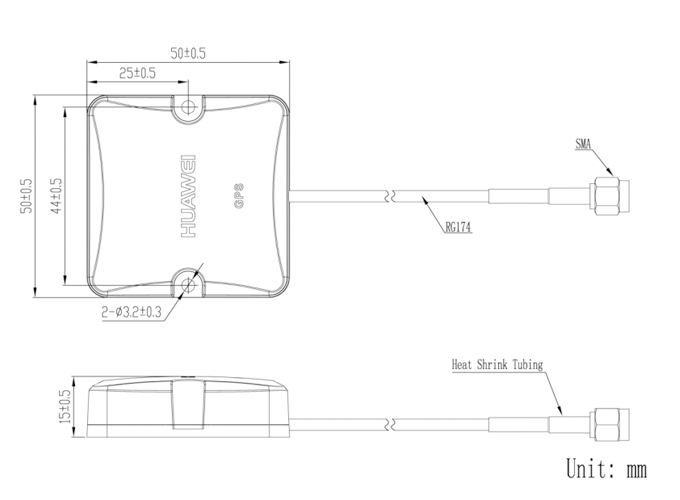

JCA237-1

SPECIFICATIONS

Item		Specifications
Antenna	Center Frequency	1568MHz
	Band Width	＞25MHz
	Polarization	RHCP
	Gain	5dBic@120*120mm ground plane
	V.S.W.R	＜2.0:1
	Impedance	50Ω
	Axis Ratio	≤6dB(仰角0~10度) ≤8dB(仰角0~10度) ≤10dB(仰角0~10度)
	天线垂直面波束宽度	95±10°
	天线水平面波束宽度	360°
	Dimension	30306mm

Item		Specifications
LNA	Frequency	1575.42MHz
	Gain@3.3V	34±2dB
	Noise Figure	＜2.0dB
	Supply Voltage	3~5.5V DC
	Current Consumption	＜20mA
	Out V.S.W.R	＜2.0
	带外抑制	DC~820MHz：25dBc min 820~1400MHz：28dBc min 1400~1475MHz：28dBc min 1475~1525MHz：25dBc min 1625~1640MHz：30dBc min 1640~2000MHz：32dBc min 2000~3000MHz：20dBc min

Item		Specifications
Materical	RF Cable	RG174
	RF Connector	SMA-J
	Radome Material	PC
	Antenna	Dielectric Ceramics
