Item | Specifications | |
Antenna(4 pins) | Frequency Range | 1559.052~1610MHz |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
V.S.W.R | ≤2.0 | |
Peak Gain | ≥3dBi | |
Impedance | 50Ω | |
Horizontal Coverage Angle | 360° | |
Vertical Coverage Angle | 5°~90° | |
LNA | Gain | B1/L1/G1/E1/E2:38±2dB |
Noise Figure | ≤1.5dB | |
Passband Fluctuation | ±1.5dB | |
Supply Voltage | 3.3~12V DC | |
Current Consumption | ≤30mA | |
V.S.W.R | ≤2.0 | |
Mechanical | Connector | TNC-K |

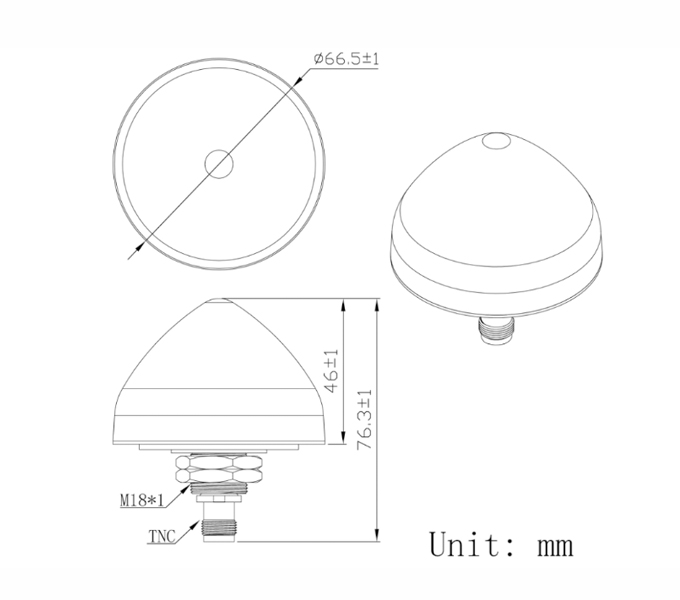

Dimension | Φ66.5mm | |
Weight | ≈150g | |
Environmental | Operating Temperature | -40℃~+85℃ |
Storage temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% (Non condensing) | |
Ingress Protection | IP67 | |
