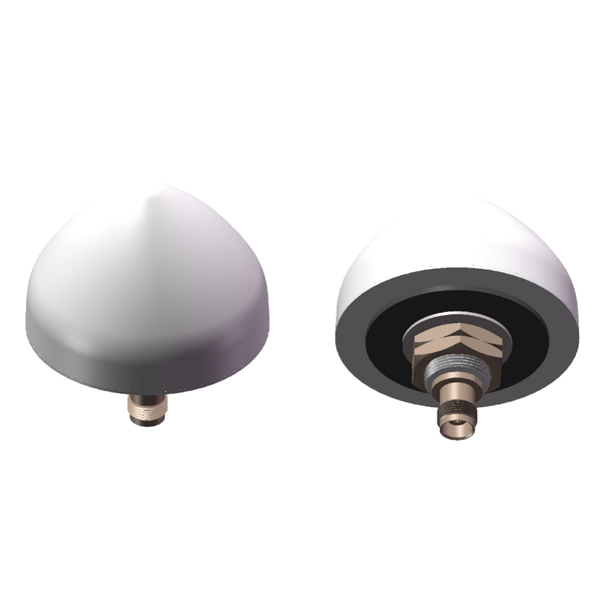

JCA225B

Download:
JCA225B.pdf

Availability:



Inquire

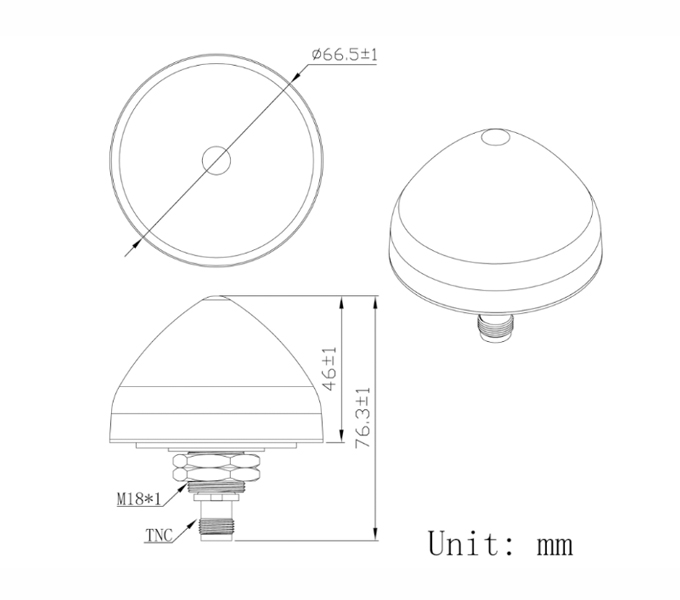

DIMENSIONS

JCA002D-1

SPECIFICATIONS

Item		Specifications
Antenna	Frequency Range	High Band BDS-B1/GPS-L1/GLONASS-G1:1561.098~1602MHz Low Band GPS-L5&L2/Galileo-E5a&E5b/BDS-B2:1176~1227MHz
	Polarization	RHCP
	Gain	3dBic@PCB（Zenith）
	V.S.W.R	＜1.5
	Impedance	50Ω
LNA	Gain	38±2dB
	Noise Figure	≤1.5dB
	Supply Voltage	3.3~12V DC
	Current Consumption	＜50mA
	V.S.W.R	＜2.0
Mechanical	Connector	TNC-K
	Dimension	Φ66.5 mm
	Radome Material	ABS
	Weight	≈150g
Environmental	Operating Temperature	-40℃~+85℃
	Storage temperature	-40℃~+85℃
	Relative Humidity	Up to 95% (Non condensing)
	Ingress Protection	IP67
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
