Item | Specifications | |
Antenna | Center Frequency | 1575.42±3MHz |
Band Width | CF±5MHz | |
Polarization | Linear | |
Gain | 1dBi(Zenith) | |
V.S.W.R | <2.0 | |
Impedance | 50Ω | |
LNA | Gain | 26±2dB |
Noise Figure | <2.0dB | |
Supply Voltage | 2.7~3.3V DC | |
Current Consumption | <14mA@3.3V | |
V.S.W.R | <2.0 | |

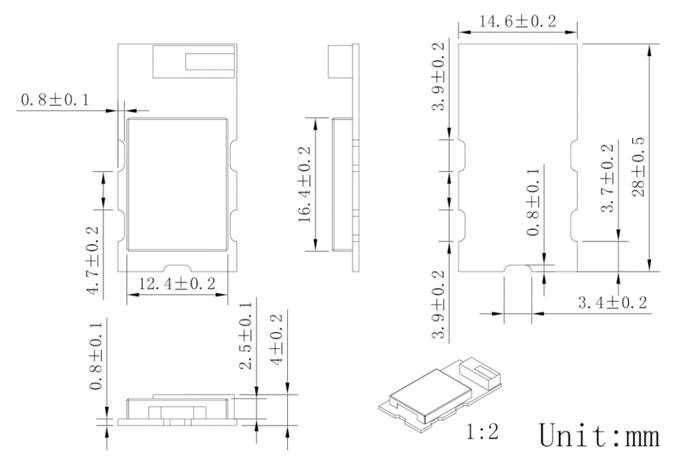

Mechanical | PCB Material | FR4 |
Mounting Method | Soldering | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 1 hours | |
Environmentally Friendly | ROHS Compliant | |
